Source Devices
Sections
Devices

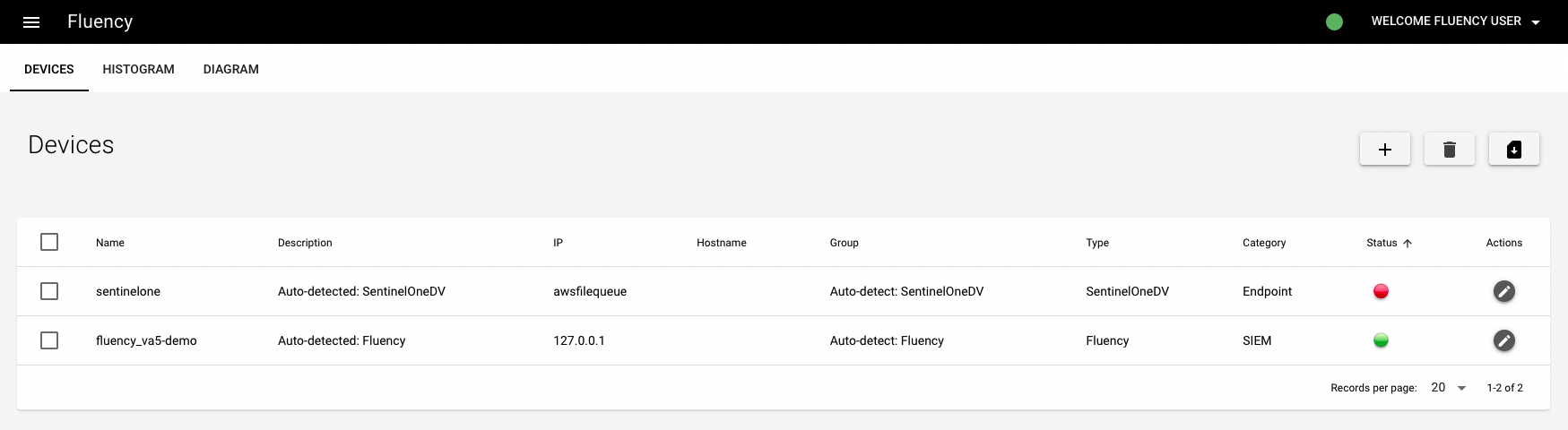

This page shows the current devices exporting events to the Fluency Server.
Each device must be manually added, with the IP address of the exporting device. For devices with entries, their exporting status will be monitored. The device’s status is represented by a status light with three colors: green, yellow, and red. A green light indicates that the device is currently working. A yellow light indicates that the device has been offline; hovering over it will show how long it has been since the device was online. A red line indicates that the device is offline.
NOTE: When Fluency accepts log exports from another device, the assumption is that the device will send data at a constant rate, and not sporadically.
Additionally, an internal service in Fluency will monitor this status and generate notifications. A notification will trigger when Fluency does not receive data from a listed device for more than 1 hour.
There are other notifications (of varying severity), at the 4-hour and the 24-hour mark. If another notification for the same device is not generated after the initial 1-hour notification, then it can be assumed that the device resumed sending data to Fluency within 4 hours.
These notifications can be disabled by contacting Fluency support.
Fluency will also collected imported data for devices that are not listed on the above table. These devices, along with their source IP address (as seen by Fluency) can be found on the Histogram Tab.
Adding a Device

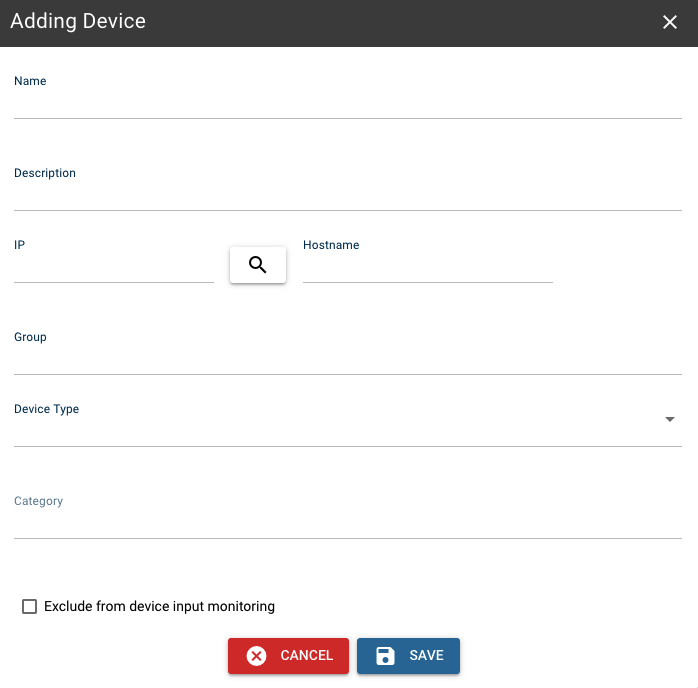

Click the “+” icon to add a device:
On this page, there are fields for name, description, IP, hostname, group and device type.
Once a device is added and associated with an IP address, the device will appear on the histogram with its associated name. Otherwise, the device’s IP address will appear on the histogram.
Histogram
This tabs (second one) shows a figure of event count (per hour) pf all the devices (including the unassigned ones, see Unknown Sources). If these devices are not configured, they will appear on the histogram as their IP addresses.
The histogram will fail to load if there is no data for the histogram. This occurs when no data has been received in the last 7 days.
You can change the time range on the top right corner, and download the image by clicking the download icon.
Diagram
(No flow at present)
Page last updated: 2023 Aug 02 18:25:55 EDT
